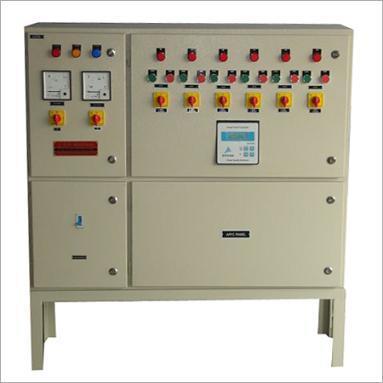

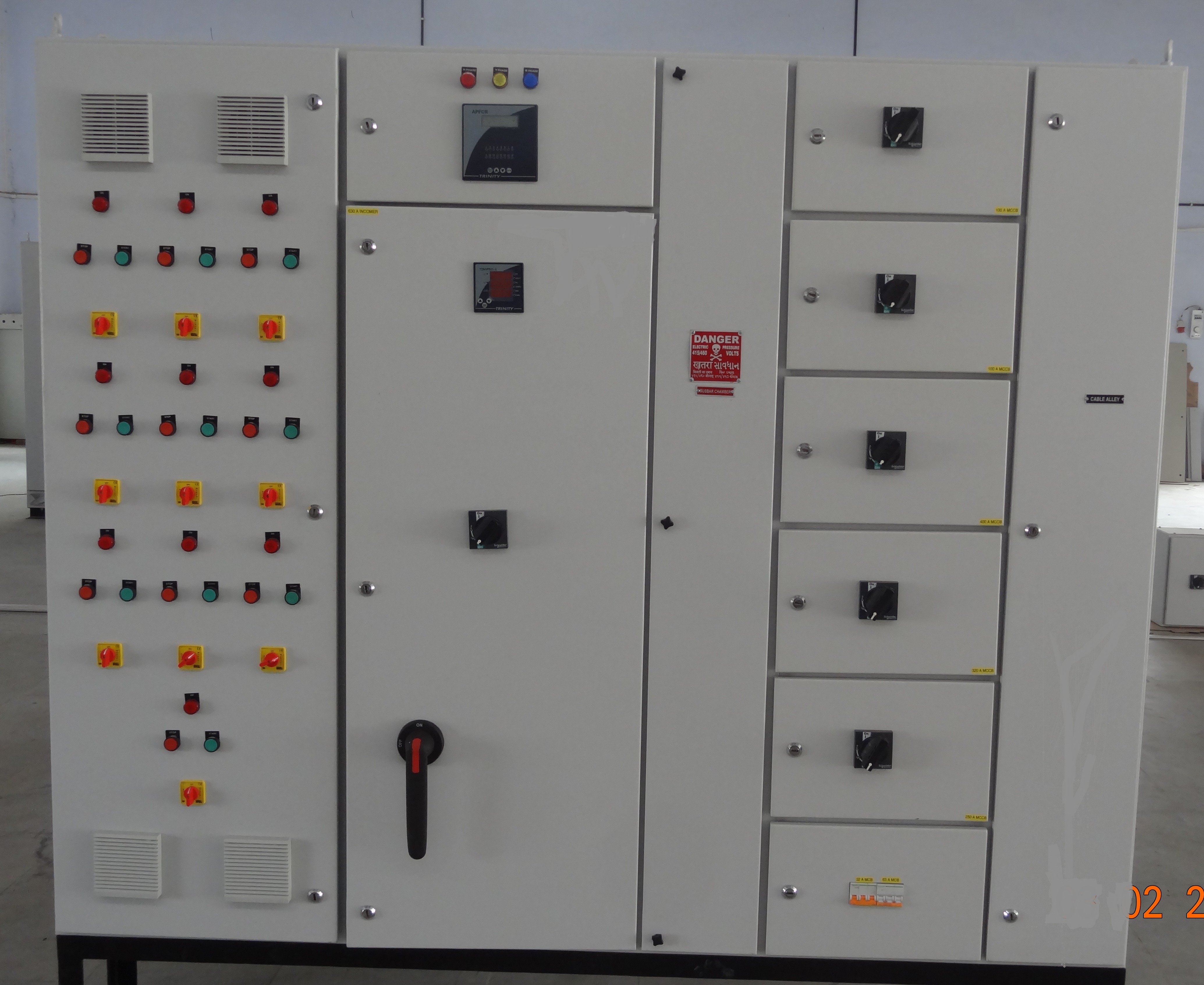

APFCR Capacitor Panel

Get a Price/Quote

MOQ : 1 Unit

APFCR Capacitor Panel Specification

Indications
LED Indications for On/Off, Fault, Step Operation

IP Rating
IP42 / IP54 Enclosure

Available Ratings
Varies from 25 kVAR to 600 kVAR or Customized

Panel Type
APFCR Capacitor Panel

Capacitor Type
Heavy Duty APP or MPP

Cooling
Natural Air or Optional Forced Air Cooling

Operating Temperature Range
0C to 45C

Mounting Type
Floor Mounted

Busbar Material
High Conductivity Copper or Aluminum

Automation Grade
Automatic

Phase
Three Phase

Usage
Industrial and Commercial

Colour
Grey

Enclosure Material
Powder Coated CRCA Steel

Application
Automatic Power Factor Control

Cable Entry
Bottom or Top Cable Entry

Meters
Digital Volt, Ampere and Power Factor Meter

Switching Device
MCB / Contactor Based

Controller Type
Intelligent APFC Microprocessor Based

Protection
Overload, Short Circuit, Under/Over Voltage, Auto/Manual Selection

Rated Voltage
415V AC

Frequency
50 Hz

APFCR Capacitor Panel Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
01 Unit Per Week

Delivery Time
2 Days

Main Domestic Market
South India, Karnataka, All India

About APFCR Capacitor Panel

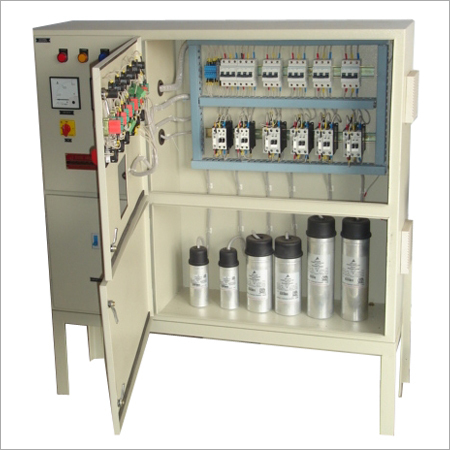

We are the leading Manufacturers and Suppliers of the most qualitative APFCR Panel which is available in two designs. Our APFCR Panel is equipped with Contactor base circuit and Thyristor switches. We have designed it to control smallest capacitor up to 20KVAr to 600KVAr. provide this panel to our at most reasonable prices and ensure a prompt delivery to all our clients.

Features :

Air ventilation for Capacitor banks
Auto Manual facility
Designed to control smallest capacitor upto 20KVAr to 600KVAr
Greater work efficiency
Reasonable prices

Intelligent APFCR Controller

The APFCR Panel is equipped with an advanced microprocessor-based controller that monitors the system and automatically manages capacitor switching. This technology helps maintain the target power factor, optimizes energy usage, and prevents penalties for low power factor, making it ideal for diverse industrial and commercial environments.

Versatile and Durable Design

With a choice of heavy-duty APP or MPP capacitors, natural or forced air cooling options, and IP42/IP54 enclosures, the panel is engineered for reliability and longevity. High conductivity copper or aluminum busbars ensure efficient power distribution, while bottom or top cable entries provide installation flexibility.

FAQs of APFCR Capacitor Panel:

Q: How does the intelligent APFC microprocessor controller improve power factor efficiency in the panel?

A: The intelligent APFC microprocessor controller continuously monitors the systems power factor and automatically switches capacitor banks as needed. This real-time adjustment ensures the power factor stays within the desired range, reducing energy loss and avoiding utility penalties.

Q: What kind of protections are included in the APFCR Capacitor Panel?

A: The panel includes overload, short circuit, under/over voltage protections, and supports both automatic and manual operation modes, ensuring safety and continuous system reliability during power disturbances.

Q: When is it advisable to use forced air cooling instead of natural air cooling?

A: Forced air cooling is recommended for installations with higher ambient temperatures, larger kVAR ratings, or limited ventilation, as it helps dissipate heat more efficiently and maintains safe operating conditions for the panel components.

Q: Where can the APFCR Capacitor Panel be installed?

A: Designed for industrial and commercial applications, the panel can be floor-mounted indoors in electrical rooms or substations. The IP42/IP54 enclosure provides protection against dust and moderate water exposure, suitable for most indoor environments.

Q: What is the process for customizing the panels kVAR rating and other specifications?

A: Customers can specify their required kVAR ratings, preferred busbar material (copper or aluminum), enclosure type, cooling method, and cable entry orientation. The manufacturer can then tailor the panel to fit specific site and load requirements.

Q: How can users monitor and control panel operation?

A: Users benefit from LED indications for status, faults, and step operation, along with digital volt, ampere, and power factor meters. The system supports both automatic and manual selection for flexible operation and easy maintenance.

Q: What are the key benefits of installing this panel in industrial or commercial facilities?

A: Installing this APFCR Capacitor Panel improves power quality, reduces electricity bills by minimizing reactive power penalties, enhances equipment lifespan, and optimizes the overall efficiency of the electrical infrastructure.
