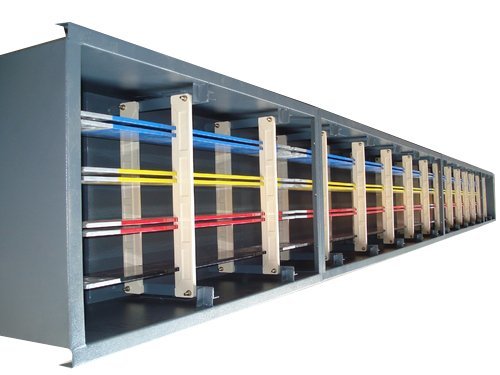

BUSBAR DUCT

Get a Price/Quote

MOQ : 1 Unit

BUSBAR DUCT Specification

Components
Copper/Aluminum Busbars, Insulators, Housing, Joints

Thickness
1.6 mm

Panel Type
Trunking Type

Base Material
Galvanized Sheet

Operating Voltage
415V

Protection Class
Class I

Cover Material
GI

Control System
Passive

Cooling System
Air Cooled

Way
3 Phase, 4 Wire

Cabinet Material
Sheet Metal

Rated Current
Up to 2500A

Current Rating
Up to 2500A

Connectivity Type
Bolt-On Joint

Features
High conductance, Corrosion resistant, Compact design, Fire resistant

Rated Insulation Voltage
660V

Rated Operation Voltage
415V AC

Protection Level
IP54

Product Type
Busbar Duct

Material
Galvanized Iron (GI)

Surface Finish
Powder Coated

Standard
IEC 61439-6

Surface Color
Silver Grey

Rated Voltage
415V

Frequency (MHz)
50/60 Hz

Maximum Output Current
2500A

Dimension (L*W*H)
Customizable

Application
Power Distribution

IP Rating
Ip54

Phase Busbar Color Code
Red-Yellow-Blue for Phases, Black for Neutral

Service Life
Over 25 Years

Mechanical Protection
Heavy-duty construction for industrial use

Ambient Temperature Range
-5C to 40C

Short-Circuit Withstand Current
Up to 50kA for 1 Sec

Insulation Material
Epoxy/Polyester or Class B/F Insulation

Fire Resistance
Complies with IEC 60332

Busbar Material
EC Grade Copper or Aluminum

Joining System
Bolt or Plug-In Type Joints

Earth Continuity
Integrated Earth Bar

Mounting
Wall or Floor Mounted

BUSBAR DUCT Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
00 Unit Per Week

Delivery Time
00 Week

About BUSBAR DUCT

Having huge market experience and knowledge of this field, we have been able to offer Distribution Panel to our customers. Our offered panel is manufactured by using premium grade components and ultra modern technology by our professionals in accordance with the industry defined quality norms. Further, the first and foremost function of this panel is to monitor and prevent any possible damage to the electrical system. This Distribution Panel can be easily availed from us in different specifications at market leading rates.

Features:

Durability
Excellent performance
Electrical stability
Efficiently built

Reliable and Efficient Power Distribution

Our Busbar Duct offers highly efficient and safe electrical distribution using EC Grade Copper or Aluminum conductors, ideal for demanding industrial settings. With customizable dimensions and a heavy-duty enclosure, it features outstanding conductance, corrosion resistance, and fire safety for enhanced system reliability and long-term service.

Engineered for Safety and Durability

Built with IP54 mechanical protection and compliance to IEC 60332 and IEC 61439-6 standards, the Busbar Duct guarantees robust protection against environmental hazards. Integrated earth continuity and Class B/F insulation ensure safe operation, even in challenging conditions with ambient temperatures from -5C to 40C. The powder-coated finish and reinforced housing extend lifespan and minimize maintenance.

FAQs of BUSBAR DUCT:

Q: How does the Busbar Duct enhance electrical distribution in industrial applications?

A: The Busbar Duct utilizes EC Grade Copper or Aluminum busbars within a heavy-duty, powder-coated GI housing to ensure superior electrical conductance, minimal voltage losses, and robust mechanical protection. Its modular, customizable design allows seamless integration into industrial power networks, providing efficient and safe distribution of electricity.

Q: What are the main installation options for this Busbar Duct system?

A: The system is engineered for either wall or floor mounting, with customizable length, width, and height to suit specific site requirements. Its bolt-on or plug-in joining system allows for flexible routing and secure connections during assembly.

Q: When should fire-resistant busbar ducting be used?

A: Fire-resistant busbar ducting, as per IEC 60332, should be installed in facilities where fire safety is critical, such as manufacturing plants, commercial complexes, or anywhere with high electrical loads, to help prevent the spread of fire and enhance personnel and asset safety.

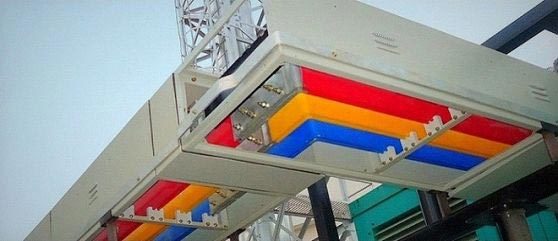

Q: Where can the Busbar Duct be applied most effectively?

A: This Busbar Duct is ideal for power distribution in industrial environments, manufacturing facilities, commercial complexes, and data centers. Its IP54 protection and corrosion-resistant construction make it suitable for both indoor and semi-outdoor installations.

Q: What is the typical process for maintaining a Busbar Duct system?

A: Regular inspection includes checking for physical damage, verifying joint tightness, ensuring insulation integrity, and cleaning vents to support air cooling. Given its powder-coated and corrosion-resistant finish, the duct typically requires minimal maintenance throughout its 25+ year service life.

Q: What benefits does the integrated earth bar provide?

A: The built-in earth bar ensures reliable earth continuity and safe dissipation of fault currents, which improves overall system safety and supports compliance with electrical safety standards.
