EB Metering Panel

Get a Price/Quote

MOQ : 1 Unit

EB Metering Panel Specification

Operating Voltage
415 V

Panel Type
Outdoor / Indoor

Cover Material
Powder Coated Steel

Cabinet Material
Steel

Way
Multiple Ways (customized)

Cooling System
Natural Air Cooled

Features
Corrosion Resistant, Lockable Door, Wall/Mounting arrangement

Components
Energy Meters, MCBs, MCCBs, Busbar, CT, Cable Terminals

Connectivity Type
Wired

Rated Insulation Voltage
660V

Control System
Manual

Thickness
1.6 mm â 2.0 mm

Rated Operation Voltage
415V

Protection Level
IP54

Rated Current
1000A max

Protection Class
Class I

Base Material
Mild Steel Sheet

Current Rating
Up to 1000A

Product Type
EB Metering Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 60439 / IS Standard

Surface Color
Grey

Rated Voltage
415 V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
1000A

Dimension (L*W*H)
Customised as per requirement

Application
Electrical Distribution and Metering

IP Rating
Ip54

Display Type
Analog / Digital

Paint Thickness
60-80 Microns

Earthing Provision
Provided

Cable Entry
Top / Bottom Entry (Customizable)

Ventilation
Perforated Louvers

No. of Meters Supported
Up to 8 Meters

Enclosure Type
Dust & Vermin Proof Design

Door Lock Type
Key Lockable (for safety and security)

Type of Meter Compatible
Energy / KWh / Multifunction Meters

Operating Temperature Range
-10C to +50C

Mounting Type
Surface / Wall Mounted

Testing Standard
IS 13779 / IEC 62053

Neutral Link
Copper

Phase Type
Three Phase / Single Phase

Anti-Tamper Provision
Available

Busbar Material
Electrolytic Copper

EB Metering Panel Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
00 Unit Per Week

Delivery Time
00 Week

About EB Metering Panel

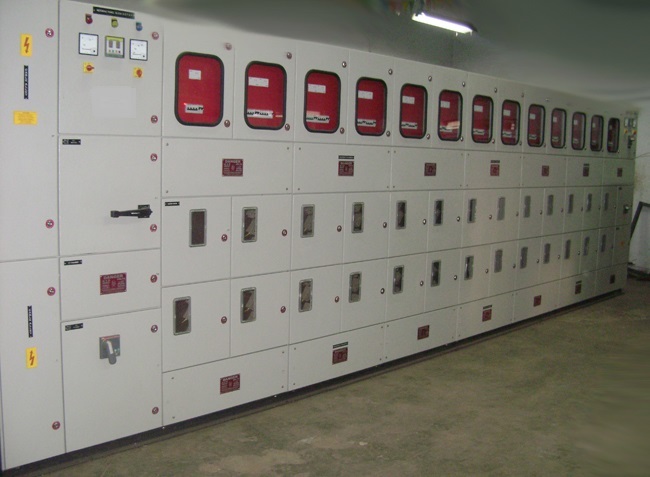

EB Metering Panel

We are manufacturing and supply of Electricity Board Specified (Bescom-Chescom-Hescom) Metering Control Panel. For Multi Story Residenticial Plats. 100Flats 300Flats – 500Flats, 600Flats etc. And Customer specified metering control (KWH) Panels for Villas.

The Metering Panel is provision for Generator Back up with ACCL (Automatic Changeover Cum Current Limiter).

Features:

Robust constructioning
Easily affordable range of prices
Supreme construction
Convenient installation
No maintenance required

Reliable Electrical Distribution and Metering

The EB Metering Panel offers dependable and comprehensive solutions for energy distribution and consumption monitoring. Designed for both indoor and outdoor installations, the robust chassis and advanced safety features ensure reliable performance in demanding environments. Ideal for commercial and industrial setups, the panel fits effortlessly into various grid scenarios, safeguarding equipment and personnel alike.

Customizable to Meet Every Requirement

Tailor your EB Metering Panel to your projects unique specifications. Choose from multiple mounting options, cable entry points, and panel dimensions. The flexible design supports up to eight meters and accommodates both analog and digital displays, ensuring compatibility with existing infrastructure. Its modular approach allows easy expansion for future needs.

Enhanced Safety and Protection

With built-in anti-tamper features, IP54 dust and vermin protection, a key-lockable door, and class I protection, this panel delivers heightened security in intricate power setups. Electrolytic copper busbars provide superior electrical conductivity, while powder coating offers resistance against environmental wear, making it both safe and durable for years of service.

FAQs of EB Metering Panel:

Q: How does the EB Metering Panel support electrical safety and security?

A: The panel incorporates several safety features, including a key-lockable door, anti-tamper provisions, and a dust and vermin proof design (IP54 rating). Its sturdy mild steel construction, copper busbars, and earthing provisions further enhance operational safety and electrical reliability.

Q: What types of meters are compatible with this metering panel?

A: This EB Metering Panel is compatible with energy meters, kWh meters, and multifunction meters (analog or digital), providing flexibility for varied commercial or industrial measurement needs.

Q: When would you choose a surface or wall-mounted metering panel?

A: Surface and wall mounting options allow you to select the configuration best suited to your installation space, whether upgrading an existing electrical room or setting up a new outdoor distribution hub. This flexibility helps optimize space utilization and accessibility.

Q: Where is this EB Metering Panel typically installed?

A: It is designed for both indoor and outdoor use in applications such as commercial complexes, industrial facilities, and utility substations, wherever reliable three-phase or single-phase energy distribution and monitoring are essential.

Q: What is the process for customizing the panels cable entry and dimensions?

A: The panel can be tailored during the design and manufacturing process. Clients specify top or bottom cable entry and provide preferred dimensions to ensure the panel integrates seamlessly with site layouts and wiring requirements.

Q: How should the panel be used and maintained for longevity?

A: Install the panel in a location within its rated temperature range (-10C to +50C), secure all cable connections, and ensure proper earthing. Routine inspections and cleaning of vents and locks help maintain optimal performance and prolong service life.

Q: What are the key benefits of choosing this EB Metering Panel for your project?

A: Key advantages include customizable configuration, robust IP54 protection, use of high-grade electrolytic copper for busbars and neutral link, compatibility with different meter types, and compliance with IEC/IS standards, ensuring reliability, scalability, and long-term safety.
