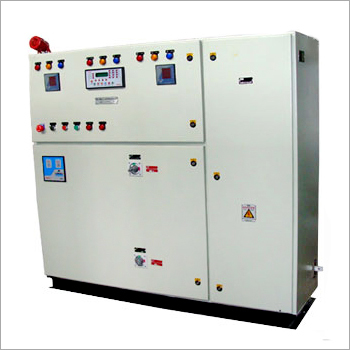

Control Panel

Get a Price/Quote

MOQ : 1 Unit

Control Panel Specification

Base Material
Mild Steel

Operating Voltage
415V

Components
MCB, Contactor, Overload Relay, Indicator Lamp

Protection Class
Class I

Current Rating
630A

Way
3 Way

Control System
Manual/Automatic

Rated Current
400A

Protection Level
IP55

Rated Operation Voltage
415V AC

Cover Material
Powder Coated Steel

Connectivity Type
Terminal Block

Thickness
1.6 mm

Rated Insulation Voltage
660V

Panel Type
Floor Mounted

Cabinet Material
Mild Steel

Features
Corrosion Resistant, Robust Design, Easy Installation

Cooling System
Natural Air Cooling

Product Type
Electrical Control Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439

Surface Color
Gray

Rated Voltage
415V

Frequency (MHz)
50 Hz

Maximum Output Current
630A

Dimension (L*W*H)
1000 x 600 x 250 mm

Application
Industrial Automation

IP Rating
IP55

Display Type
Analog and LED Indicator

Operating Temperature Range
-10C to +55C

Bus Bar Material
Copper

Mounting Type
Floor Standing

Enclosure Type
Sheet Metal Enclosure

Earth Bar
Provided

Number of Doors
Double Door

Weight
Approx 42 kg

Cable Entry
Top & Bottom

Control Panel Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
00 Unit Per Week

Delivery Time
00 Week

About Control Panel

Having years of experience and knowledge, we are counted among the well known manufacturers and exporters of Control Panel. This is used for easy monitoring of voltage current of generators. We use best quality metals, alloy and other related raw materials to design this panel with perfection. Our quality controllers test this under various quality parameters to make sure its performance and effectiveness. In addition to this, Control Panel provided by us are widely appreciated by our customers for their important attributes such as:

Low power consumption
Less maintenance
Easy installation
Minimal tendency of forming rust

Reliable Construction for Demanding Environments

The floor-mounted control panel is constructed from mild steel with a powder-coated finish, ensuring robustness and corrosion resistance. The double-door sheet metal enclosure, IP55 protection level, and fitted earth bar provide a high degree of safety and durability in industrial settings. This design complies with IEC 61439 standards, supporting a long service life in varied operating conditions from -10C to +55C.

Optimized for Flexible Installation & Operation

Designed for convenience, this panel allows top and bottom cable entry, making integration into existing automation systems seamless. The terminal block connectivity and natural air cooling system keep installation and maintenance hassle-free. With manual and automatic control options, users can tailor operations according to specific process requirements, supported by clear analog and LED indicators for status monitoring.

Advanced Safety & Performance Features

The copper bus bar, 3-way configuration, and included components such as MCBs, contactors, overload relays, and indicator lamps ensure reliable circuit protection and system control. With a rated operation voltage of 415V AC and a frequency of 50 Hz, the panel is tailored for industrial usage, supporting up to 630A output and offering a Class I protection class for enhanced operational safety.

FAQs of Control Panel:

Q: How do I install the floor-standing control panel in my facility?

A: The control panel is designed for easy installation, featuring both top and bottom cable entry options to accommodate various site requirements. Its compact dimensions (1000 x 600 x 250 mm) and manageable weight (approximately 42 kg) facilitate placement. Always ensure that installation is performed by qualified personnel according to applicable electrical and safety standards.

Q: What are the main benefits of using a copper bus bar in this control panel?

A: Copper bus bars provide superior electrical conductivity, supporting higher current flow (up to 630A) while minimizing power losses. This results in improved efficiency, reduced heating, and enhanced reliability under heavy-duty industrial automation loads.

Q: When is it necessary to use the manual versus the automatic control mode?

A: Manual control is typically used during testing, maintenance, or initial system setup, giving operators direct oversight. Automatic mode is preferred for regular operations, where processes require consistent, unattended control facilitated by programmed logic. The flexibility to switch modes supports process optimization and safety.

Q: Where can this control panel be utilized?

A: This panel is ideal for industrial automation settings such as manufacturing plants, power distribution centers, and other facilities requiring reliable process control and electrical safety. Its robust, corrosion-resistant enclosure and IP55 rating make it suitable for indoor and protected outdoor environments across India.

Q: What protections does the IP55-rated enclosure provide?

A: An IP55 protection rating ensures that the control panel is shielded against dust ingress and low-pressure water jets from any direction. This level of protection is critical for maintaining long-term performance and safety in challenging industrial environments.

Q: How does the panels natural air cooling system function?

A: The natural air cooling design uses strategically placed vents and heat-dissipation pathways within the mild steel enclosure to manage internal temperatures efficiently without the need for fans or forced ventilation. This ensures low maintenance and reliable operation across a wide temperature range.

Q: What is included in the control panels standard component set?

A: The control panel comes equipped with key components such as miniature circuit breakers (MCB), contactors, overload relay, indicator lamps, and both analog and LED indicators. These elements are selected to deliver dependable motor control, circuit protection, and real-time operational feedback.
