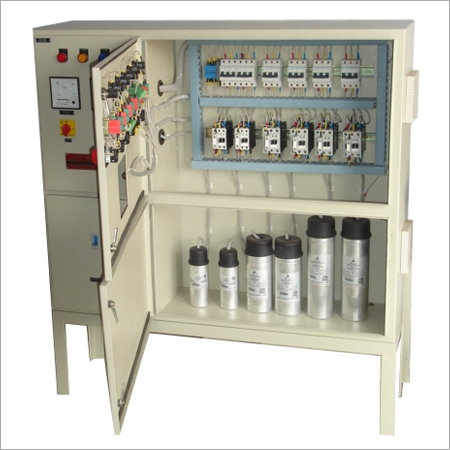

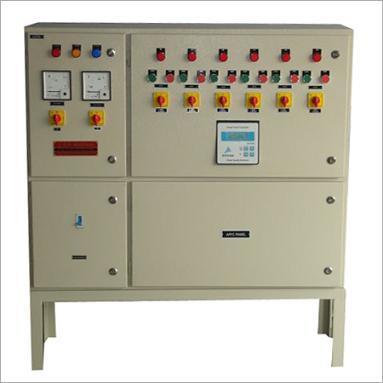

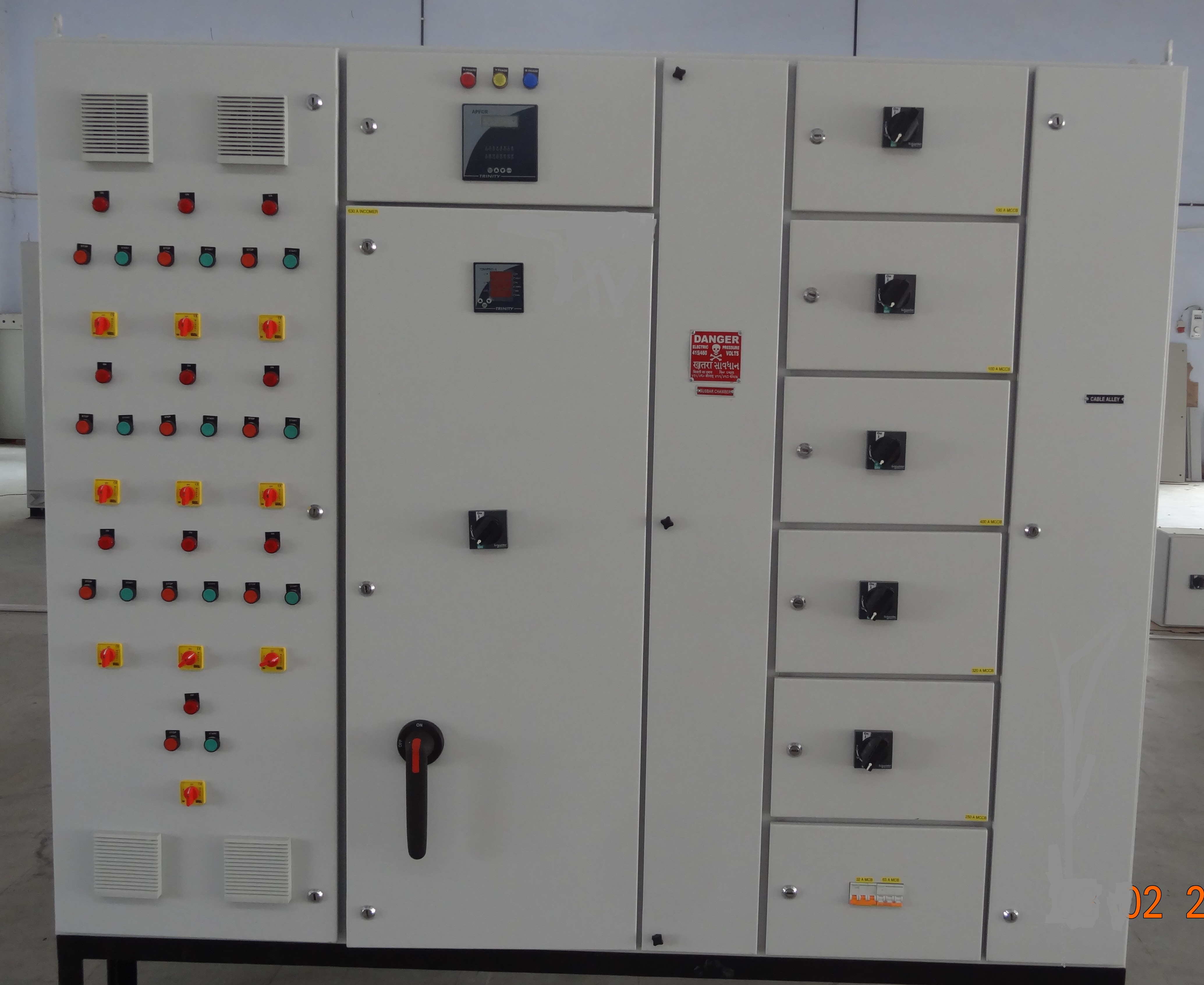

APFC CAPACITOR PANEL

Get a Price/Quote

MOQ : 1 Unit

APFC CAPACITOR PANEL Specification

Control System
Microprocessor-based APFC Relay

Cover Material
Mild Steel

Protection Class
Class I

Protection Level
IP55

Thickness
1.6 mm

Way
Multi Way (as per requirement)

Rated Operation Voltage
415V

Features
Auto/Manual Control, High Power Factor Accuracy, Overload and Short Circuit Protection, Long Service Life

Rated Insulation Voltage
660V

Cooling System
Ventilated with Louvers and optionally Fans

Rated Current
100A to 600A

Cabinet Material
Mild Steel

Components
Capacitors, MCCB, MCBs, Contactor, APFC Relay, Indicator Lamps, Bus Bar, CTs

Operating Voltage
415V AC

Base Material
Mild Steel

Current Rating
100A to 600A

Connectivity Type
Wired

Panel Type
Wall Mounted/Floor Mounted

Product Type
Automatic Power Factor Correction (APFC) Capacitor Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IS/IEC 61439

Surface Color
Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
600A

Dimension (L*W*H)
1200 mm x 1000 mm x 400 mm (customizable)

Application
Power Factor Correction in Industrial/Commercial Installations

IP Rating
IP55

Display Type
Digital Display

Short Circuit Withstand Capacity
Up to 50 kA

Transportability
Panel Skid Base for Easy Handling

Operating Humidity
Up to 95% RH non-condensing

Optional Accessories
Hooter, Energy Meter, Surge Protection Device

Cable Entry
Top/Bottom Cable Entry

Indication Lamps
R-Y-B Phase Indication & Capacitor Step Status

Degree of Automation
Fully Automatic

Enclosure Construction
Rigid Welded Construction

Service Access
Front/Rear Door Accessible

Panel Earthing
Dual Earthing Provision

Mounting Type
Floor/Wall Mounting

Earth Bus Bar
Provided

Type of Capacitor Used
Heavy Duty Metalized Polypropylene

Standards Compliance
IS 13947, IEC 60947

Panel Certifications
CE, ISO 9001:2015

Bus Bar Material
Electrolytic Grade Copper or Aluminium

Rated Frequency
50 Hz

Ambient Temperature Range
-10C to +50C

Maintenance
Low Maintenance, Easy Access for Servicing

APFC CAPACITOR PANEL Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
00 Unit Per Week

Delivery Time
00 Week

About APFC CAPACITOR PANEL

We are the leading Manufacturers, Importers and Suppliers of the most qualitative APFCR Panel which is available in two designs. Our APFCR Panel is equipped with Contactor base circuit and Thyristor switches. We have designed it to control smallest capacitor up to 5 KVAR. We provide this panel to our client’s at most reasonable prices and ensure a prompt delivery to all our clients.

Features :

Air ventilation for Capacitor banks
Auto Manual facility
Designed to control smallest capacitor upto 5 KVAR
Greater work efficiency
Reasonable prices

Comprehensive Power Factor Correction

This APFC Capacitor Panel is expertly crafted for optimal automatic power factor correction, improving energy efficiency and reducing penalty charges from utilities. Its advanced microprocessor-based relay and heavy-duty components provide robust and precise compensation, ideal for various industrial and commercial setups.

Rugged and Flexible Construction

Featuring a rigid welded mild steel enclosure, powder coating, and IP55-rated protection, the panel withstands harsh conditions and high humidity (up to 95% RH, non-condensing). Flexible mounting options and cable entry points facilitate easy installation in your desired location, and dual-access doors ensure hassle-free maintenance.

State-of-the-Art Safety & Monitoring

Equipped with high-grade MCCBs, MCBs, and R-Y-B phase indication lamps, the panel offers cutting-edge overload, short circuit, and earthing protection. Digital display and clear status indicators guarantee simple monitoring and swift diagnostics, supporting seamless operation and compliance with international safety standards.

Customizable and User-Friendly

The panels modular multi-way architecture and customizable size accommodate diverse current ratings from 100A to 600A. Easy service access, low maintenance, ventilated cooling, and optional add-ons like energy meters and surge protection devices offer an optimal blend of functionality, ease-of-use, and reliability.

FAQs of APFC CAPACITOR PANEL:

Q: How does the APFC Capacitor Panel improve power factor in industrial or commercial installations?

A: The APFC Capacitor Panel automatically adjusts compensation using heavy-duty metallized polypropylene capacitors controlled by a microprocessor-based relay. This ensures real-time correction of lagging power factor, minimizing energy losses and preventing utility penalty charges, thereby enhancing overall operational efficiency.

Q: What are the main benefits of using this APFC panel in my facility?

A: Key benefits include automatic power factor correction, reduced energy consumption, lower electricity bills, and decreased risk of penalties from utility providers. The panel also provides advanced safety, high accuracy, long service life, and customizable configurations to suit your facilitys requirements.

Q: When should the APFC Capacitor Panel be serviced or maintained?

A: Thanks to its low-maintenance design and easy-access doors (front or rear), routine visual inspections and scheduled maintenance can be performed easily. It is recommended to check connections, clean the enclosure, and inspect components semi-annually or as per operational demands.

Q: Where can the APFC Capacitor Panel be installed, and what are the mounting options?

A: The panel is designed for installation in both industrial and commercial environments. It can be either floor or wall-mounted, based on available space and operational needs. Cable entries are possible from both the top and bottom for installation flexibility.

Q: What is the process for integrating this panel with existing electrical systems?

A: Integration involves mounting the panel, connecting main power cables to the bus bars (copper or aluminium), and interfacing CTs for current sensing. The microprocessor-based relay then manages automatic switching of capacitors. Optional accessories like energy meters or surge protection devices can also be incorporated during installation.

Q: How does the APFC Capacitor Panel ensure operator safety and equipment protection?

A: The panel is built to high safety standards with features such as short circuit withstand capacity up to 50 kA, dual earthing, overload protection, and MCCBs/MCBs for circuit management. IP55 protection guards against dust and moisture, while indicator lamps provide clear operational status.

Q: What certifications and standards does the APFC Capacitor Panel comply with?

A: This panel meets CE and ISO 9001:2015 certifications and is constructed according to IS 13947, IEC 60947, and IS/IEC 61439 standards, ensuring reliable performance, safety, and quality assurance for use in demanding environments.
